GR-203 Ornamental Seams Sewing Machine | Professional Sports Shoes and Leather Footwear Decorative Sideline Stitcher
-
The GR-203 is a professional industrial ornamental seams sewing machine specifically engineered for creating neat and beautiful decorative sideline stitching on sports shoes, leather shoes, and thick leather products. Outfitted with a specialized curved needle and a computer-governed servo motor, it ensures flawless lockstitch tracking and ultimate operation simplicity.
- Neat Sideline Aesthetics: Tailored precisely to deliver elegant ornamental border stitches on thick leather upper frames.
- Adjustable Stitch Range: Offers fully customizable, stepless stitch length adjustments ranging smoothly from 0 to 9 mm.
- Computerized Needle Control: Driven by an advanced 750W motor providing flexible speed regulation and automated needle stopping.
- Haas CNC Processed Parts: 100% of vital internal driving components are processed by imported original US Haas CNC machinery to ensure extended mechanical lifespans.

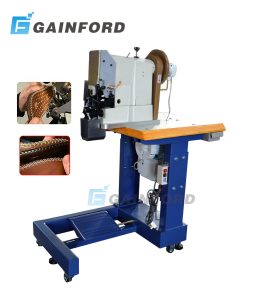

GR-203 Ornamental Seams Sewing Machine
GR-203 special ornamental seams sewing machine with computerized needle controls.
Product Overview
The GR-203 is a high-performance special equipment developed for high-volume footwear production plants and premium leather manufacturing workshops. It is primarily utilized for executing neat, beautiful, and consistent decorative sideline stitching on sports shoe uppers, luxury dress shoes, and multi-layered heavy leather components. Driven by an advanced variable servo control system, this ornamental seams sewing machine generates a highly stable lockstitch pattern. Its reasonably aligned detail frameworks facilitate intuitive operations, dramatically maximizing workflow efficiency while adding significant aesthetic value to premium footwear styles.
Advanced Features of GR-203 Ornamental Seams Sewing Machine
- Flawless Sideline Border Stitching: Purpose-built to produce neat, structurally consistent, and beautiful ornamental border tracking on heavy-ply sports and leather shoe contours.
- Specialized Curved Needle System: Employs a robust GB200 curved hook needle assembly to seamlessly execute double-thread lockstitches through intricate curves.
- High-Precision Haas CNC Fabrication: To eliminate mechanical cycle drift under persistent industrial loads, 100% of inner drive transmission gears are machined using imported genuine US Haas CNC machine tools.
- Computerized Needle Control Matrix: Powered by an electronic variable motor, permitting operator tracking loops to manage speed flexibly while needle stopping profiles are automated via computers.
GR-203 Special Shoe Sewing Machine Technical Parameters
| Specification Item | Technical Details |
|---|---|
| Model Reference | GR-203 (特种针车 / Ornamental Seams Series) |
| Sewing Speed | Stepless Variable Speed Regulation |
| Stitch Seam Profile | Lockstitch Double Thread |
| Stitch Length Range | 0 – 9 mm |
| Sewing Thickness Capacity | 1.5 – 6 mm |
| Sewing Thread Material | Cotton thread, Linen thread, Synthetic thread |
| Sewing Needle Model | Curved Needle GB200 |
| Motor Calibration | 750W / Single-phase 220V, Three-phase 380V (50-60HZ) |
| Machine Net Weight (N.W.) | 116 Kg |
| Export Package Weight (G.W.) | 182 Kg |
| Export Package Size | 117 × 68 × 143 cm (L×W×H) |
To tolerate prolonged physical cycles when driving lockstitch curved needles through heavy leather layers at rapid paces, all critical transmission joints of the GR-203 are precision-milled. Learn more about advanced CNC industrial milling standards on the official Haas Automation digital platform.

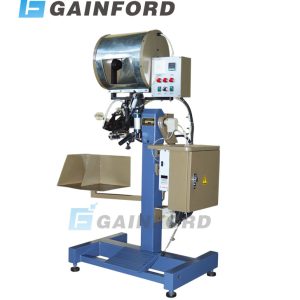

As a trusted factory provider of specialized automated shoe machinery, we support comprehensive footwear production workshops. Explore our high-efficiency Goodyear welt stitching machine lines to fully optimize your downstream sole assembly workflows.
FAQ About GR-203 Ornamental Seams Sewing Machine
Q1: What types of footwear structures are best handled by the GR-203 special seaming machine?
A1: The GR-203 is specifically engineered for intricate border styling. It is widely applied for creating uniform, neat, and highly beautiful decorative sideline stitching on the upper frames of athletic sports shoes, leather formal oxfords, fashion sneakers, and heavy compound leather panels, meeting luxury production requirements seamlessly.
Q2: How does the GB200 curved needle mechanism enhance thick material sewing tracking?
A2: Standard vertical straight needles easily deflect or experience high friction resistance when penetrating dense leather side margins, leading to skipped stitches. The specialized GB200 curved hook needle system of our shoe manufacturing machinery maneuvers tightly along structural edge borders, distributing thread tension evenly across 1.5-6mm thickness plies safely.
