GR-EC781 New Electronic Double Thread Moccasin Sewing Machine | Professional Footwear Upper Decorative Pattern Stitching Equipment
The GR-EC781 is a cutting-edge electronic control moccasin sewing machine designed for premium decorative upper stitching on leather shoes, wrapped loafers, and luxury footwear. Driven by advanced stepper motors and a computerized interface, it offers unprecedented pattern customization and structural stability for modern shoe factories.Massive Pattern Memory: Comes with 100 built-in core styles, capable of storing up to 600 distinct single or double needle designs.Full Stepper Motor Control: Two-needle switching and material feeding are completely governed by stepper motors for faster, smoother pattern alterations.Precision Reinforcement: Allows independent programming of front and rear reinforcement stitch distances and widths (up to 10 stitches).Industrial Grid Power: Driven by a 750W high-torque motor supporting both single-phase 220V and three-phase 380V options, featuring a 10mm maximum sewing width.
High Quality Two Cold Two Hot Toe Molding Machine

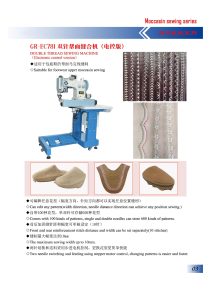

The GR-EC781 electronic double thread moccasin sewing machine for professional footwear wrappers.
Function

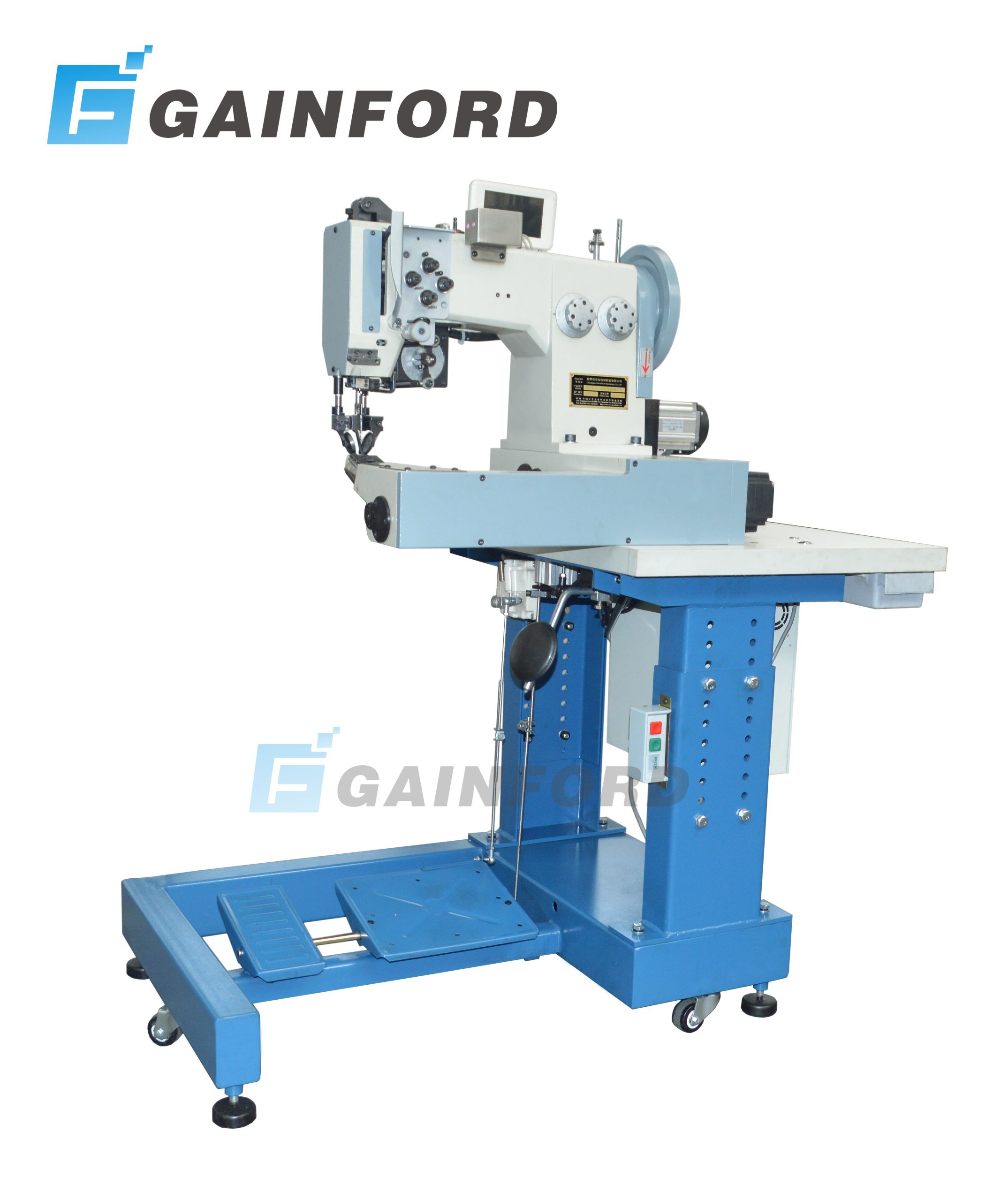

GR-EC781 electronic control moccasin sewing machine for industrial footwear upper decorative stitching.
Product Overview
The GR-EC781 represents the pinnacle of computerized alignment in modern footwear production plants. It is primarily utilized for premium wrapper moccasin edge stitching, structural embossing, and custom pattern styling on leather shoe uppers. Driven by an advanced variable servo control system coupled with dual stepper motors, the GR-EC781 allows operators to edit width and needle distance directions freely to achieve any position sewing. With its massive 600-pattern storage capacity, this machine maximizes efficiency for global high-fashion footwear contract manufacturers.
Advanced Features of GR-EC781 Moccasin Sewing Machine
- Comprehensive Pattern Editing: Operators can edit any custom stitch geometry across width and needle distance vectors, unlocking limitless design flexibility.
- 600-Pattern Storage Capacity: Arrives factory-configured with 100 core styles, with expanded internal computer memory to store up to 600 single and double needle variations.
- Dual Stepper Motor Tracking: Both the needle-switching mechanism and the material-feeding matrix are driven by precision stepper motors, rendering pattern updates faster and much more intuitive.
- Independent Back-Tack Settings: Front and rear reinforcement stitch parameters can be calibrated separately up to a 10-stitch threshold, ensuring clean seam endings.
GR-EC781 Electronic Moccasin Sewing Machine Technical Parameters
| Specification Item | Technical Details |
|---|---|
| Model Reference | GR-EC781 (Electronic Control Version) |
| Maximum Stitch Length | 10 mm |
| Maximum Sewing Width | Up to 10 mm |
| Thread Compatibility | Moccasin Heavy Thread / Mark thread |
| Sewing Needle Model | DD×1 (25#) Industrial Needle |
| Motor Calibration | 750W / Single-phase 220V, Three-phase 380V Options |
| Machine Net Weight (N.W.) | 185 KG |
| Gross Weight (G.W.) | 240 KG |
| Export Package Size | 103 × 73 × 164 cm (L×W×H) |
To tolerate rapid physical oscillations when driving stepper motors across heavy leather uppers, all essential rotary shafts of the GR-EC781 series are precision-machined. Learn more about premium CNC industrial milling tolerances on the official Haas Automation digital platform.
As a turnkey provider of automated shoe machinery, we support comprehensive factory setups. Check out our high-efficiency Goodyear welt stitching machine units to fully optimize your downstream sole bonding lines.
FAQ About GR-EC781 Electronic Moccasin Sewing Machine
Q1: How does the stepper motor control system optimize the GR-EC781 sewing workflow?
A1: Traditional mechanical moccasin machinery requires manual cam replacements to alter stitch shapes, which takes considerable mechanical downtime. The GR-EC781 electronic control version features dual stepper motors governing needle switching and material feeding tracks synchronously. This smart engineering lets shoe factory operators toggle custom patterns via the panel instantly, reducing configuration cycles and maximizing output.
Q2: What are the main benefits of the independent front and rear reinforcement stitch controls?
A2: High-end leather loafers and wrapper footwear experience significant physical stress at the seam entry and exit points. The computerized system of the GR-EC781 allows factory managers to set front and rear back-tack parameters separately (up to 10 stitches). This locks down the moccasin thread tension at structural edges, preventing premature unravelling and maintaining a luxurious aesthetic finish.
Q3: What grid voltage and needles are calibrated for the GR-EC781 shoe manufacturing machinery?
A3: The GR-EC781 offers superior workshop versatility by supporting both Single-phase 220V and Three-phase 380V factory power grids via its 750W high-torque servo setup. To handle multi-layered materials and heavy mark threads flawlessly up to a 10mm width without bending, the machine incorporates robust DD×1 (25#) industrial sewing needles.
Q4: What are the shipping package specifications for international logistics of the GR-EC781?
Ready to introduce advanced computerized pattern sewing to your luxury footwear line?
Contact us today to receive factory-direct wholesale quotes and complete technical catalogs for the GR-EC781 series!
