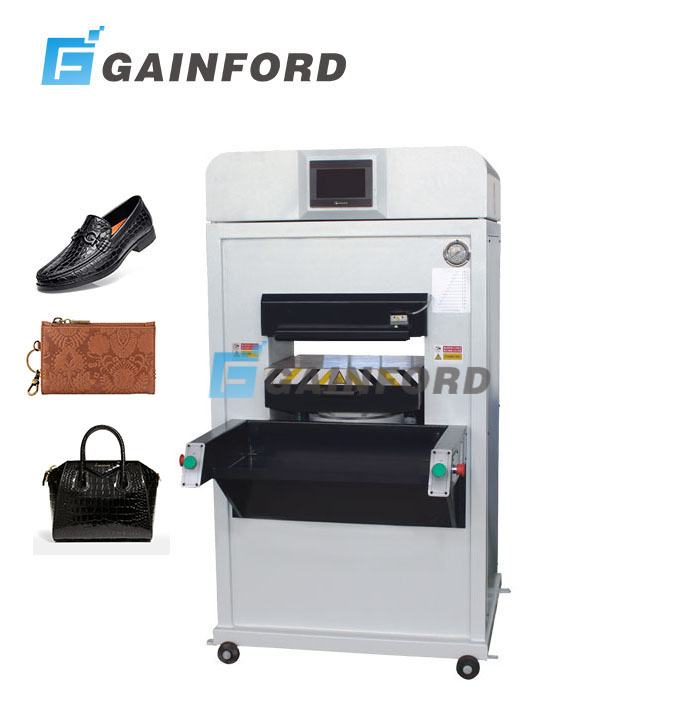

Computer Hydraulic Plane Heat Embossing Press Machine for Leather
Computer Hydraulic Embossing Press Machine for Leather



Function
Features:
◆The machine is divided into 80 tons, 110 tons, 130 tons, 160 tons and other specifications.
◆The drawer-type workbench with safety device is safe and convenient to operate.
◆The machine has the characteristics of high strength, good embossing quality, fast response speed and long service life.
◆Adding a bottom plate with electric heating function can further increase the embossing speed and increase production.
◆The electrical system adopts PLC control, with a touch screen and a graphical operating system to make the circuit more precise.
◆Ten advantages: intelligent control; pressure holding function; parameter memory; fault warning; extremely fast rise; double protection; instantaneous pressure increase; substantial energy saving; flexible pressure adjustment; adjustable stroke.
| Model | 80T | 110T | 130T | 160T |
|---|---|---|---|---|
| Machine size | 950×920×1500 (mm) | 1500×1250×1500 (mm) | 1600×1250×1500 (mm) | 1650×1250×1650 (mm) |
| Pack size | 1050×1020×1600 (mm) | 1600×1300×1550 (mm) | 1700×1350×1550 (mm) | 1750×1350×1750 (mm) |
| Weight | 800KG | 1200KG | 1300KG | 1500KG |
| Power | 1.1KW | 1.1KW | 1.1KW | 1.5KW |
| Pressure | 0–80T | 0–110T | 0–130T | 0–160T |
| Working area | 380×380(mm) | 500×400(mm) | 500×600(mm) | 600×600(mm) |
| Voltage | 380V 50HZ / 220V 60HZ | |||
