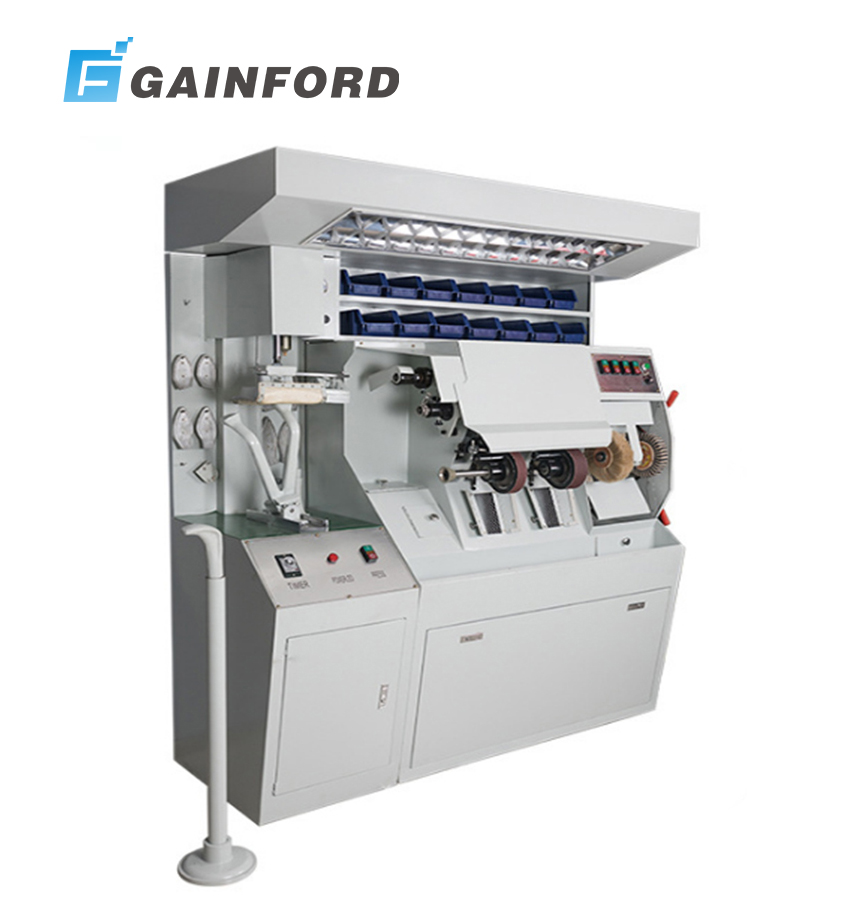

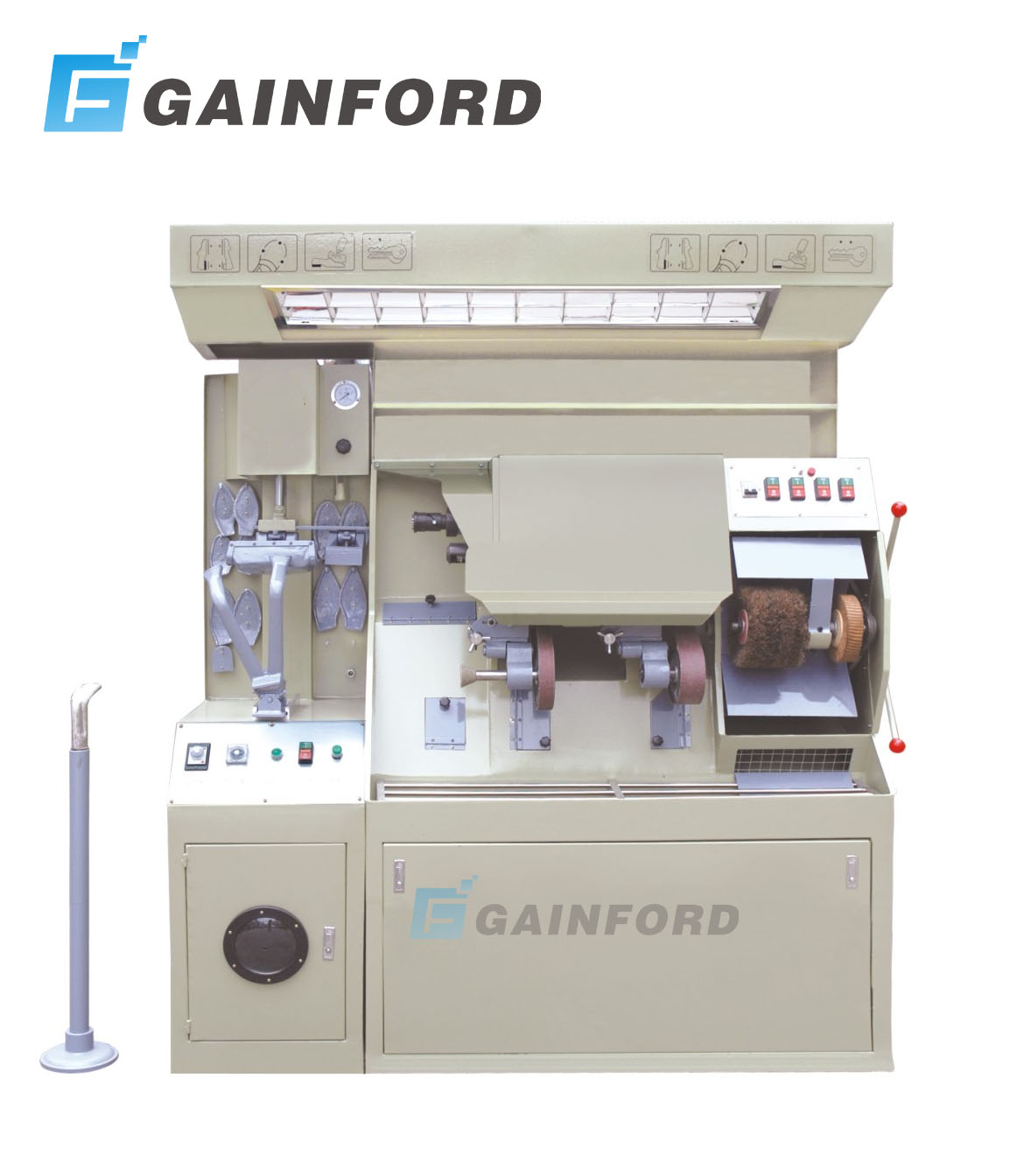

180 Shoe Repair and Care Machine with 14 Function

Function

Product Overview

The 180 multi-function shoe repair machine is a compact, all-in-one workstation that integrates 14 different functions into a single unit. It eliminates the need for multiple devices, saving valuable workspace and investment costs. Designed for shoe repair shops, shoe care centers, and small-scale footwear manufacturers.

14 Essential Functions in One Machine

• Grinding – For rough grinding and shaping of soles and edges
• Polishing – For creating a smooth, shiny finish on various materials
• Waxing – For applying protective and aesthetic coatings
• Filling – For repairing damaged soles and heel layers
• Dust Extraction – For keeping the work area clean and safe
• Glue Application Assistance – For sole and heel attachment
• Pressing – For strong and lasting adhesion after gluing
• Edge Trimming – For cleaning up rough edges after grinding
• Drying – For quick curing of adhesives
• Shaping & Reshaping – For correcting deformed shoe structures
• Sterilization & Deodorization – For hygienic treatment of used footwear
• Leather Wrinkle Removal – For making the upper smooth and professionally finished
• Nail Fixing – For secure heel and sole attachment

Technical Specifications

• Model: 180
• Voltage: 220V/50Hz
• Air Pressure: 0.35 MPa
• Net Weight: 470 kg
• Gross Weight: 500 kg
• Machine Size (H×L×W): 2.03 × 0.68 × 2.03 m
• Package Size (H×L×W): 2.25 × 1.9 × 0.84 m
• Polishing Wheel Motor Power: 370W / 750W (optional)
• Polishing Wheel Speed: 1400 rpm with 6 interchangeable wheels
• Grinding Wheel Motor Power: 550W
• Grinding Wheel Speed: 2800 rpm with belt drive
• Dust Extractor Motor Power: 1100W at 2800 rpm
• Milling Cutter Power: 370W at 1400 rpm
• Oven/Dryer Power: 800W
• Light Box: 80W (2×40W)

Key Features

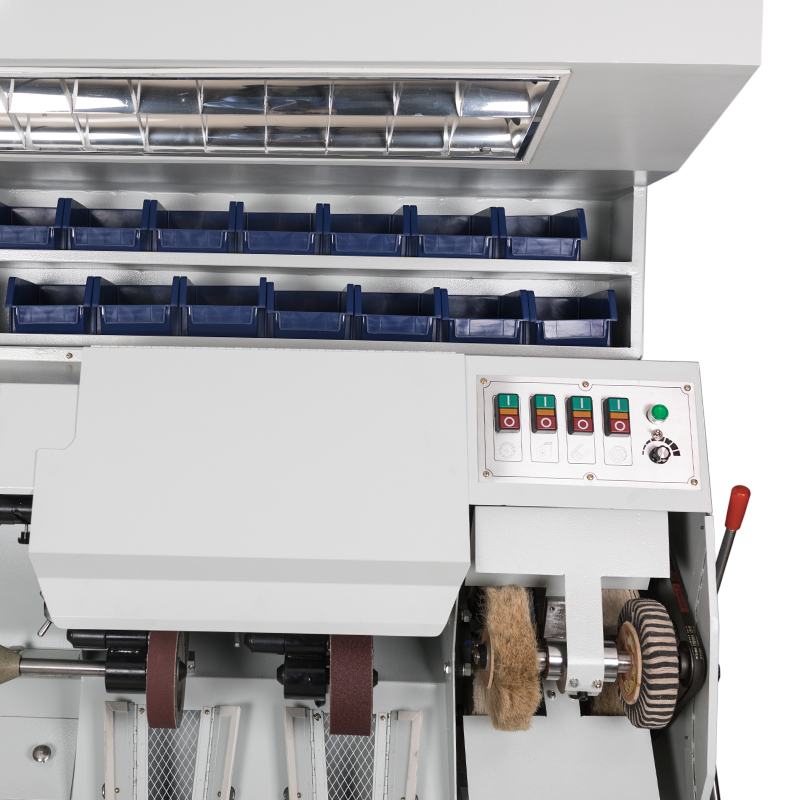

Turn the handwheel to change to a different polishing wheel.

• Powerful Grinding System – 2800 rpm grinding wheel with belt drive design for efficient rough grinding and shaping
• Precision Polishing – 1400 rpm polishing wheel with 6 interchangeable wheels for different material stages
• Dust Extraction – 1100W powerful dust collection system keeps work area clean
• Edge Trimming – Milling cutter for precise edge trimming and contour shaping
• Pneumatic Pressing – 0.35 MPa pressing system for strong adhesive bonding
• Angle Grinder Motor – Flexible shaft grinding for edge trimming and smoothing grooves and uneven contours after sole replacement
• Drawer Storage – Bottom drawer for organized tool storage (wrenches, sandpaper, hand iron included)
• Light Box – 80W illumination for clear visibility of detail work

Why Choose 180?

The 180 shoe repair machine is more than just equipment; it is a comprehensive footwear finishing workstation. By integrating 14 essential functions into one robust unit, it offers shoe repair and manufacturing businesses significant advantages in productivity and quality.

Suitable For

• Shoe repair shops
• Shoe care centers
• Small-scale footwear manufacturers
• Leather goods workshops
