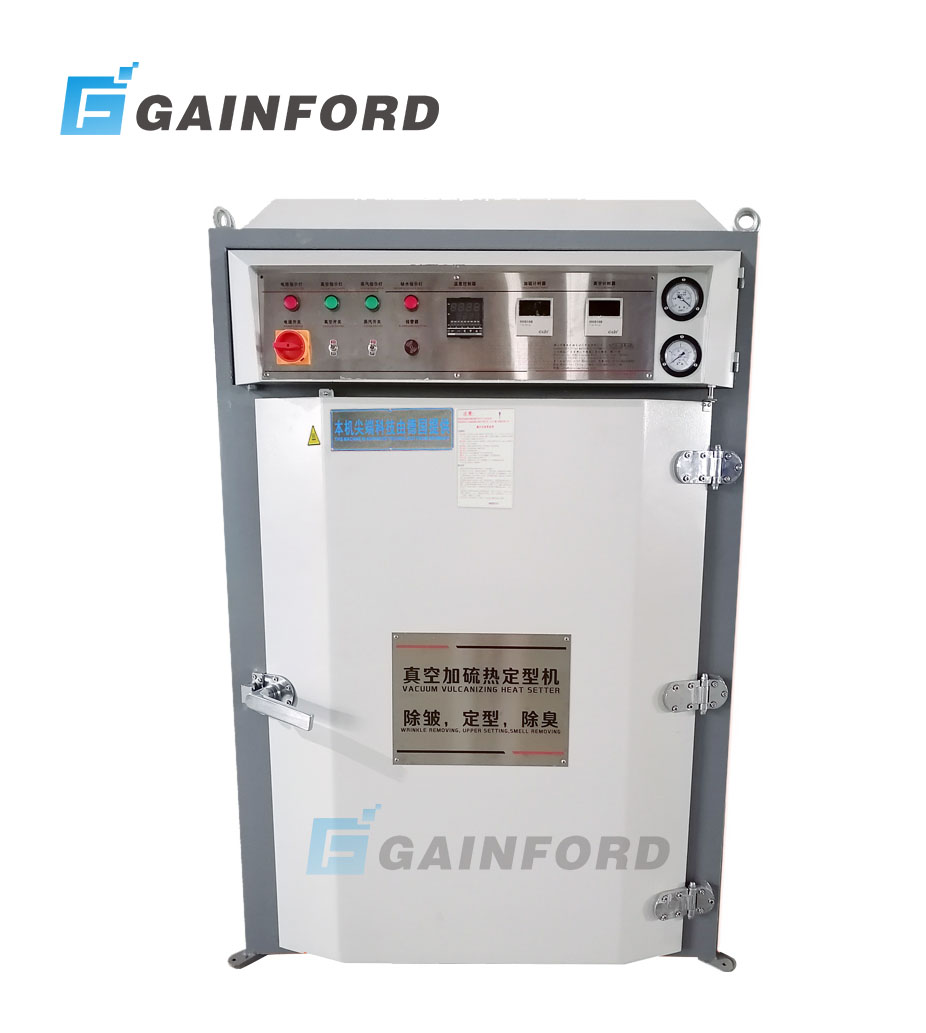

133 Intelligent Cart Shoe Vacuum Oven Aging Oven Machine
The 133 Intelligent Cart Vacuum Heat Setting Machine features auto-lifting cart design for easy operation. CNC control with German energy-saving system saves over 70% energy. Steam spray and vacuum shaping. Output: 800-1200 pairs/8hrs.
| Weight | 880 kg |
|---|---|
| Dimensions | 130 × 116 × 185 cm |
133 Intelligent Cart Shoe Vacuum Oven Aging Oven Machine
Function
133 vacuum heat setting machine before after treatment – shoe upper with wrinkles and creases
133A vacuum heat setting machine before after treatment – shoe upper with wrinkles and creases
Product Overview
The 133 Intelligent Cart Vacuum Heat Setting Machine is designed for men’s and women’s shoes and boots of various shapes and specifications. Combining German technology with advanced vacuum systems, this machine delivers efficient, energy-saving, and eco-friendly shoe shaping performance.
Main Applications
- Men’s and women’s shoe shaping
- Boot vacuum forming and setting
- Upper wrinkle removal
- Leather footwear heat treatment
Key Features
- Button Panel Control System – User-friendly interface with maintenance prompt function

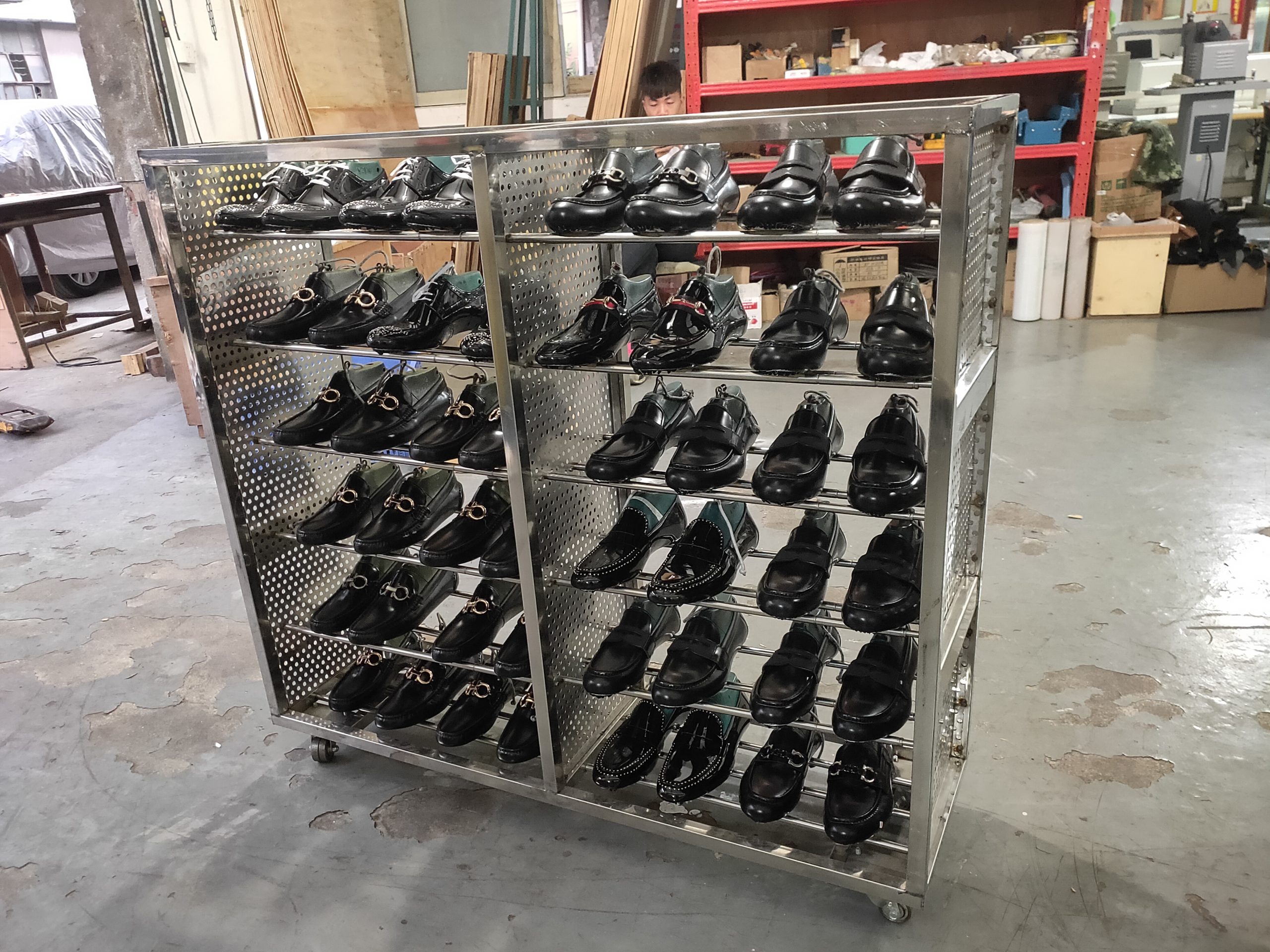

- Auto-Lifting Cart Design – Saves time and labor, improves working efficiency
- German Energy-Saving System – Combined with closed heating system, saves over 70% energy compared to traditional machines
- German Two-Cycle Wrinkle Removal System – Excellent wrinkle removal effect through vacuum shaping for perfect detail processing
- All-Round Steam Spray Device – Complete process: heating softening → steam spray → drying → vacuum shaping, ensures upper fits perfectly to last
- Fast Setting Speed – One case of shoes shaped within 12 minutes
Technical Specifications
- Model: 133
- Voltage: 380V/50Hz
- Power Consumption: 5-6KW/Hour
- Output: 800-1200 pairs/8 hours

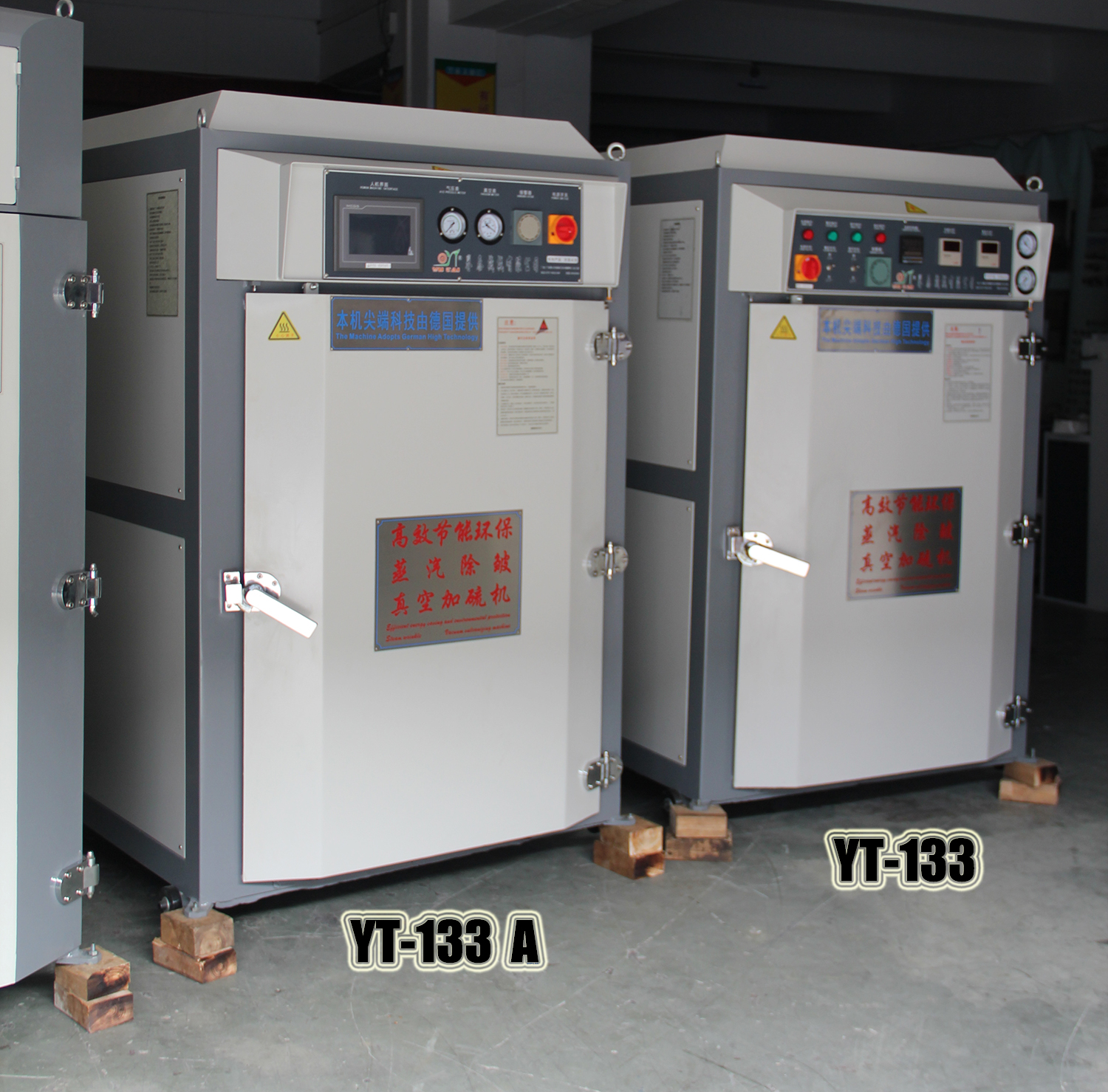

Differences Between Shoe Vacuum Shaping and Wrinkle Removal Machines, Models 133 and 133A

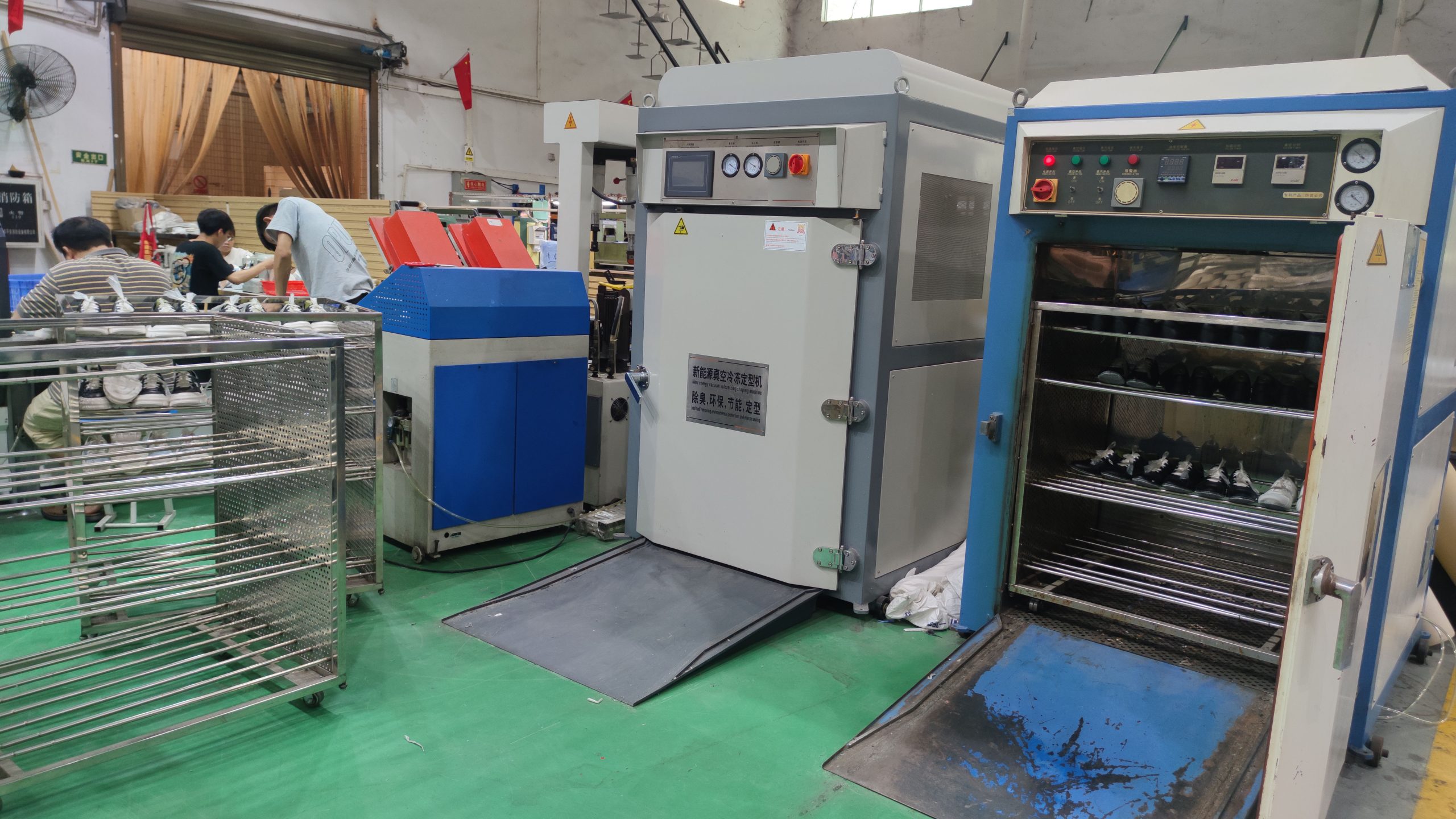

133A intelligent cart vacuum heat setting machine with auto-lifting cart for shoe shaping working on shoe factory
Why Choose 133?
The 133 cart-type vacuum heat setting machine is ideal for footwear manufacturers seeking energy efficiency and fast production cycles. The combination of German technology, auto-lifting cart design, and all-round steam spray ensures professional results with minimal energy consumption.
Benefits for Your Production
- Energy Efficient – German energy-saving system saves over 70% power
- Labor Saving – Auto-lifting cart design reduces manual handling
- Fast Production – 12 minutes per batch increases output
- Better Quality – German two-cycle wrinkle removal ensures perfect detail
- Easy Operation – CNC control with intuitive interface
